Read ahead
The co-driver checks the next instruction and any caution before the junction.
ROADBOOK GUIDE
READ THE ROADBOOK.
FOLLOW THE ROUTE.
A tulip diagram is a compact roadbook instruction that tells the crew where to go next. It combines with distance and route notes to keep driver and co-driver making the same decision.
Important: symbols, distance origins and instruction priority vary by event. The organiser’s roadbook, briefing and official on-route instructions always take priority.
WHAT IS A TULIP DIAGRAM?
ONE CLEAR VIEW.
THE NEXT DIRECTION.
A tulip diagram is not read in isolation. Follow the consecutive diagrams, total distance and section distance in order so the crew can prepare for the next junction.
Total distanceSection distanceTulipInstruction
12.30 km0.00 km↱Take the right route
13.15 km0.85 km↑Continue straight
14.20 km1.05 km↰Take the left route
This is a fictional sequence created by EZ Rally. Symbols, distance origins and instruction formats vary by event.
FOLLOWING THE ROADBOOK
READ AHEAD.
CONFIRM WITH DISTANCE.
Match total and section distance
Using Trip 2 for total distance and Trip 1 for section distance makes the next tulip easier to anticipate.
Confirm the route
Distance is a guide. Match the diagram with the road and any official on-route instruction.
NEXT — PC TIMING
ONCE THE ROUTE IS CLEAR.
MEET THE MOMENT.
Some classic rallies add PC-style timing to the roadbook. Learn how PC elapsed-time targets, SPC, PC and CO clock-time controls work before the event.
PC TIMING · TIME RALLY
HOW PC, SPC AND CO WORKUnderstand PC elapsed-time targets, CO clock times, the co-driver’s tap and the timing terms used by EZ Rally Timer.
EZ RALLY TRIPMETER’S ROLE
THE DISTANCE.
ONE CLEAR SCREEN.

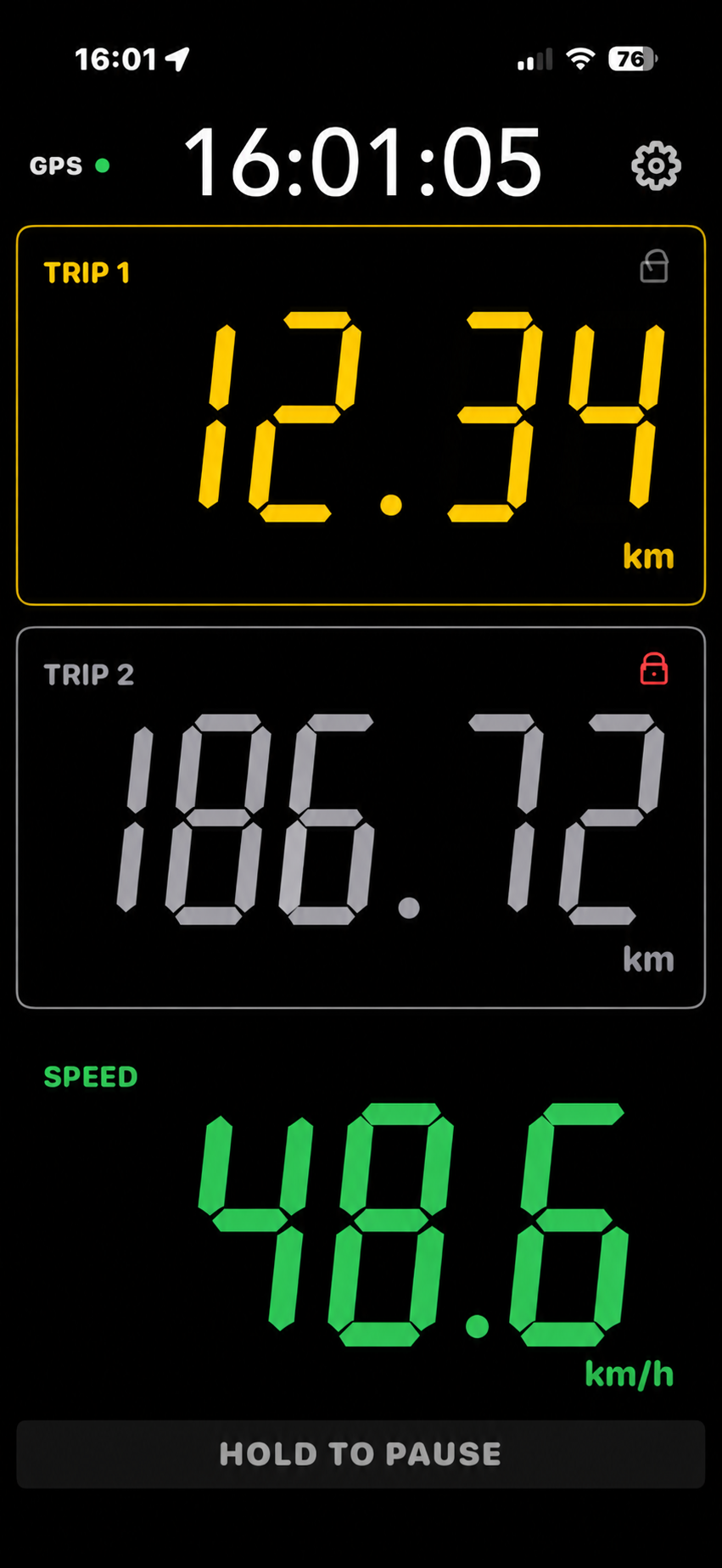

Trip 2 and Trip 1 keep the roadbook’s total and section distances clear at a glance.
Match the roadbook distance
Use Trip 2 for total distance and Trip 1 for section distance. The large display helps the co-driver compare the current reading with the next tulip quickly.
Calibrate before the rally
Match the tripmeter to the event’s reference distance before driving, then use the organiser’s roadbook and official instructions as the authority.
EXPLORE EZ RALLY TRIPMETER →SAFETY FIRST
DO NOT OPERATE WHILE DRIVING.
The driver must focus on driving. Where permitted by law, regulations and the organiser’s instructions, the co-driver or passenger should read the roadbook and operate the app.
